Rack Power Supplies

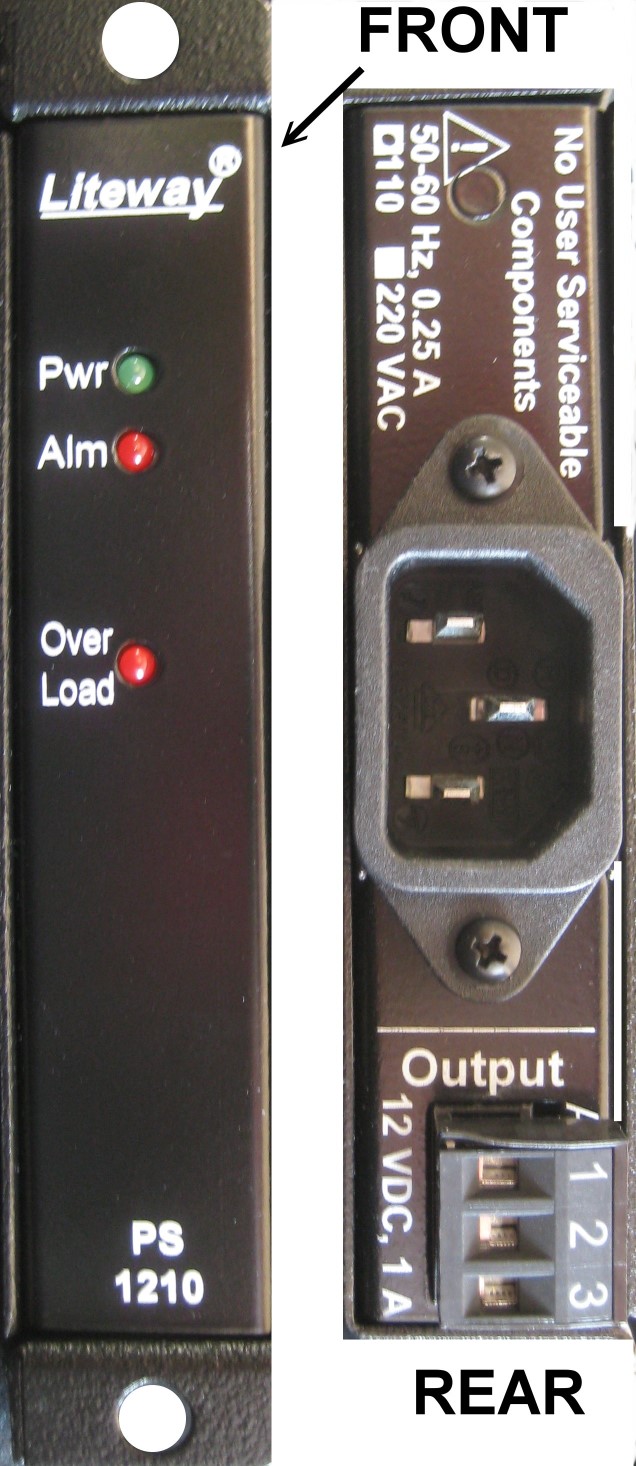

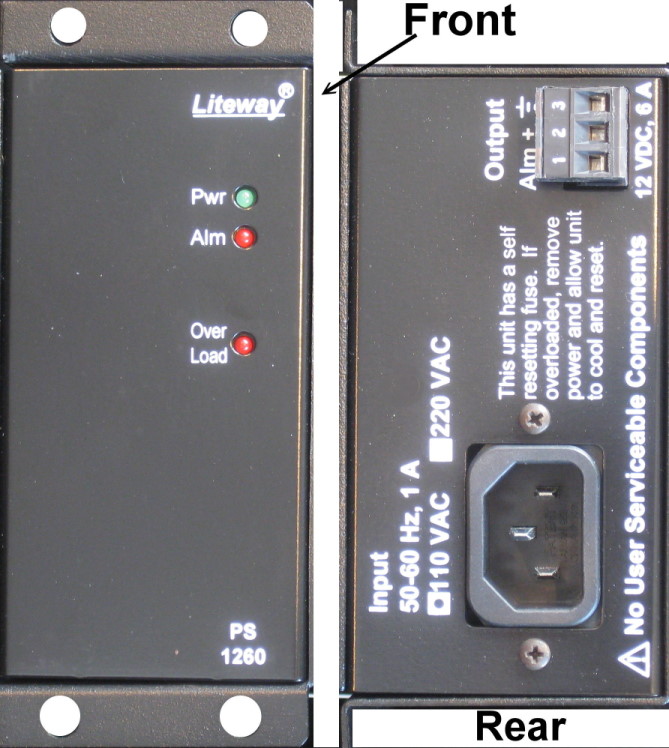

| The PS-1210 and PS-1260 are a stand-alone or rack mountable
power supply that may be used to power single or multiple
transmission units. These power supplies has power, overload and alarm indicators. Internal fuses protect the unit in the event of an overload and will automatically reset when the overload condition is removed. The power supply has the ability to be paralleled for redundant operation and are "hot swappable". This efficient supply is compliant with the US Energy Independence and Security Act of 2007 and current California Energy Commission (CEC) efficiency standards. |
| Specifications | Important Features | ||
| DC Output Voltage | 12V unregulated* (12-17VDC) | · Redundant
Operation and "hot swappable" |
|
| DC Output Current | 1 Ampere (PS-1210) 6 Ampere (PS-1260) |
· Self Resetting Fuse | |
| AC Input | US 115 VAC, 50/60 Hz EU 230 VAC, 50/60 Hz UK 240 VAC, 50/60 Hz AU 240 VAC, 50/60 Hz |
· Power & Overload Indicators | |
| AC Input Connector | Universal IEC | ·
Stand-alone, DIN or Rack Mountable (same unit) |
|
| Indicator Lights | Power, Overload, Alarm** | ||
| Operating Temperature | -35 to +75 °C | ||
| Humidity | <95% non-condensing | ||
| MTBF | >100,000 hours | ||
| Weight | 1 lb. | ||
| Physical Size (mm) | 7.0" x 5.0" x 1.0" (178mm x 127mm x 25.4mm) |
| -US models |
-EU models |
 |
 |
| -UK models | -AU models |
 |
|
